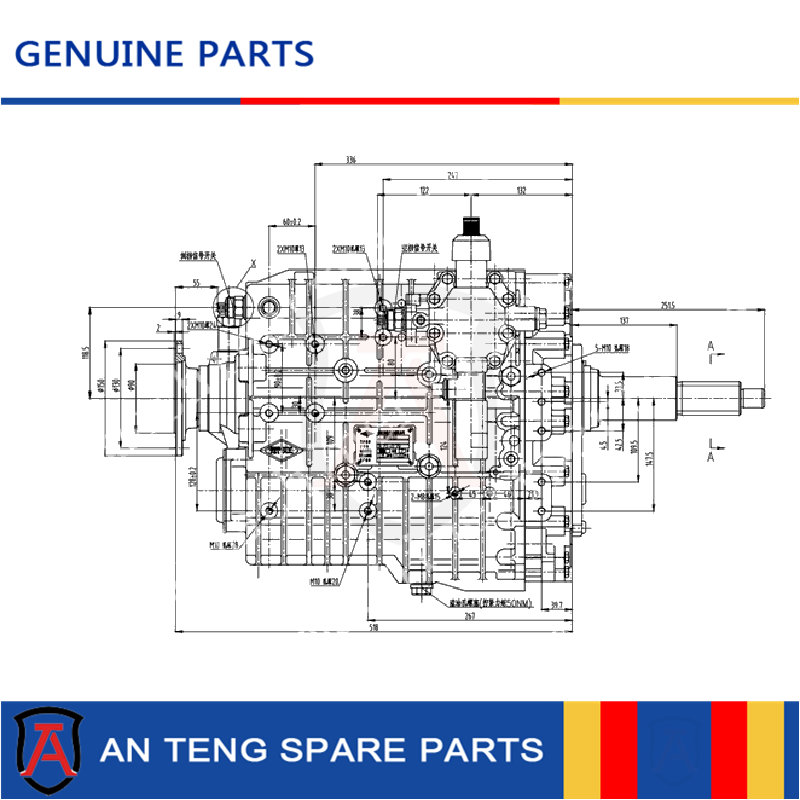

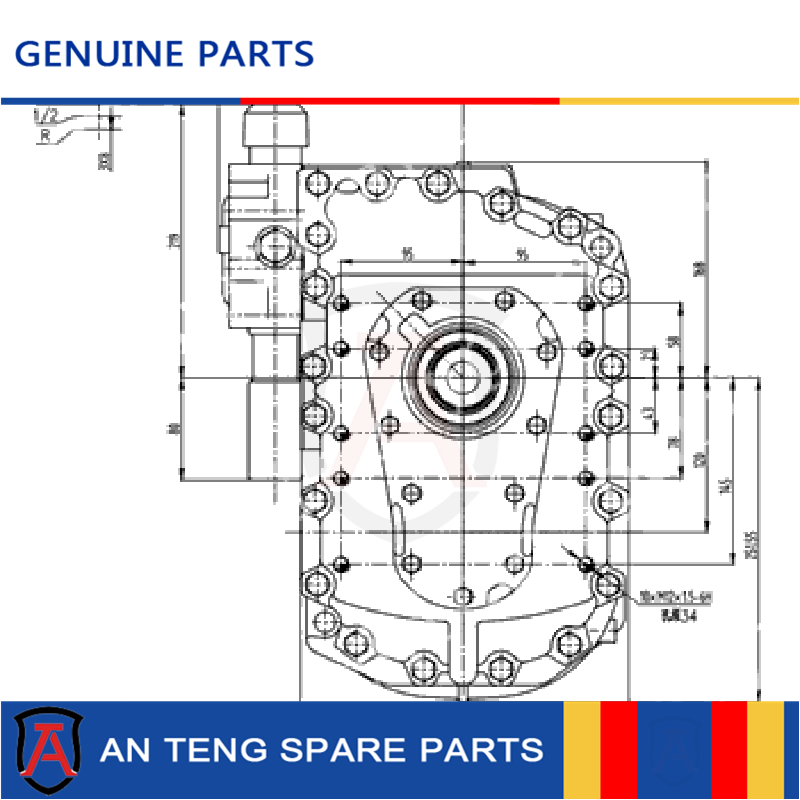

QIJIANG GEARBOX TRANSMISSION ASSEMBLY QJGT 6TS610

MODEL	6TS610
Technology type	Single intermediate shaft synchronizer mechanical transmission
Gear number	6 forward, 1 backward
Installation length	518mm
Maximum input torque	600N.m
Lubricating oil quantity	7L
Center distance	154mm
Weight	120KG
Maximum applicable load	15T
Applicable engine input power	80-150KW
Optional add-on	hand brake
Manipulating type	manual direct	manual remote	AMT
Recommended configuration clutch housing	SAE3#
Applicable emission standards	G5			G4
Adaptation model, logistics	vehicle truck

Gear position and gear ratio

First gear

Second gear

Third gear

Fourth gear

Five gear

Six gear

Reverse gear

L

H

L

H

L

H

L

H

L

H

L

H

L

H

6.42

3.51

2.06

1.34

1.00

0.75

5.76

6.72

3.68

2.15

1.41

1.00

0.97

6.03
