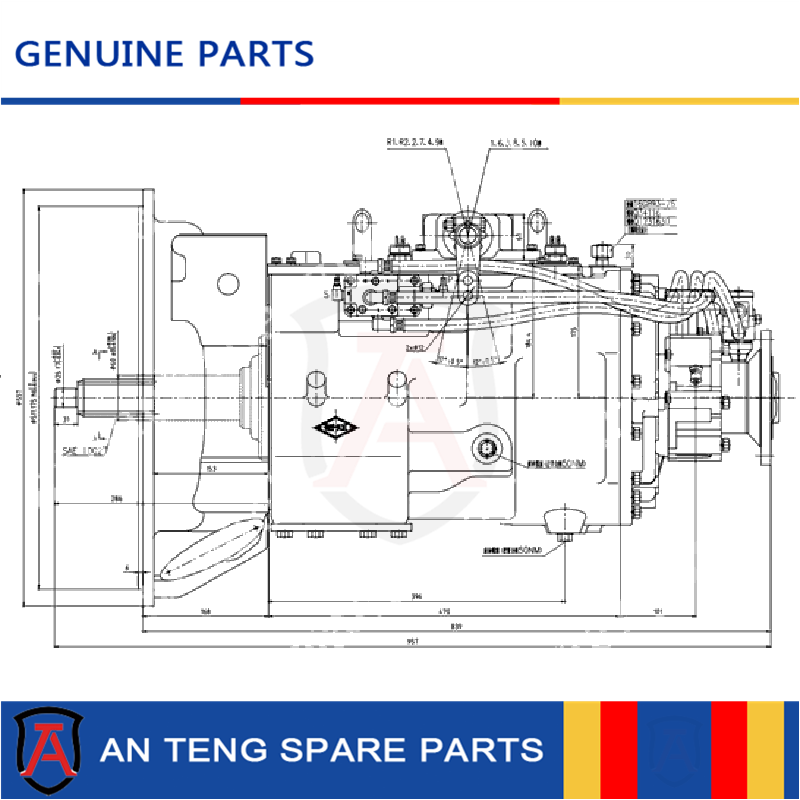

QIJIANG GEARBOX TRANSMISSION ASSEMBLY QJGT-9TS1500

MODEL	10TD1800
Technology type	Single intermediate shaft synchronizer mechanical transmission
Gear number	10 forward, 1 backward
Installation length	749mm
Maximum input torque	1800N.m
Lubricating oil quantity	12L
Center distance	148mm
Weight	284KG
Maximum applicable load	25T
Applicable engine input power	200-300KW
Optional add-on	hand brake	power takeoff	part-time case
Manipulating type	manual direct
Recommended configuration clutch housing	SAE1#
Applicable emission standards	G5			G4
Adaptation model, logistics	Dump trucks, trucks, tractors, cranes, etc.

Gear position and gear ratio
First gear		Second gear		Third gear		Fourth gear		Five gear		Six gear		Seven gear		Eight gear		Nine gear		Reverse gear
L	H	L	H	L	H	L	H	L	H	L	H	L	H	L	H	L	H	L	H
13.04		8.48		6.04		4.30		3.43		2.47		1.89		1.28		1.00		11.77
9.73		6.37		4.65		3.43		2.53		1.86		1.36		1.00		0.73		11.60
13.30		8.65		6.16		4.39		3.50		2.52		1.93		1.31		1.02		12.01
9.92		6.50		4.74		3.50		2.58		1.90		1.39		1.02		0.74		11.83
